Livestock and Poultry Manure Solid-liquid Separator
Product performance indicators
Processing capacity: ≤20m³/h; solid moisture content after treatment: ≤65%;
Outer box: stainless steel; auger: stainless steel coated with high-strength wear-resistant coating; screen: stainless steel;
Processing materials: dairy cow manure, biogas residue, food processing residues, etc.;
Details
Product Advantages
Practicality
The slag-liquid separation speed is fast, and the water content of the feces slag after separation is ≤65%, and the slag discharge amount and water content can be adjusted.
Advancedness
Strong separation ability, stable discharge, double lock cover design of the machine body, easy maintenance.
Durability
The frame, screen frame, auger, and screen are made of stainless steel and wear-resistant treatment, which is corrosion-resistant, strong and has a long service life.
Economical type
High degree of automation, low power consumption, and low price.
Detailed introduction
Equipment parameters
Product model: 9GY-40P
External dimensions: 2650*935*2250mm;
Material: Stainless steel for the whole machine (except the legs and the reduction motor)

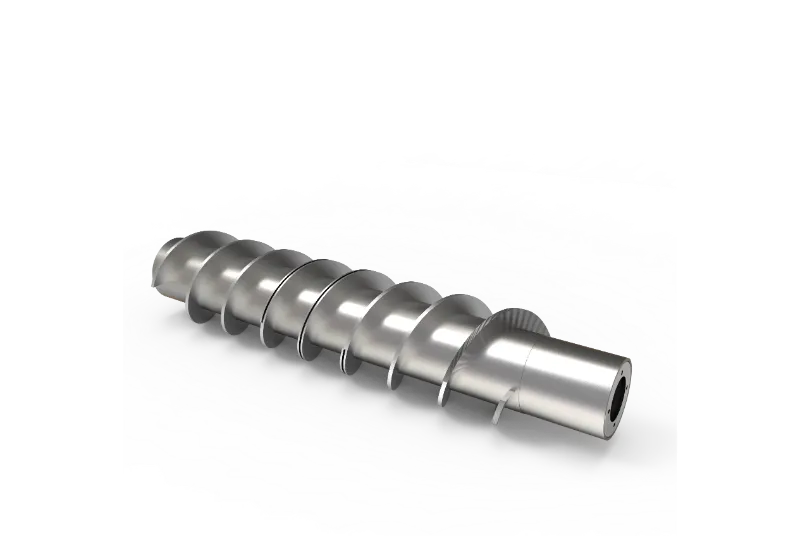

Auger material: Stainless steel with high-strength wear-resistant coating

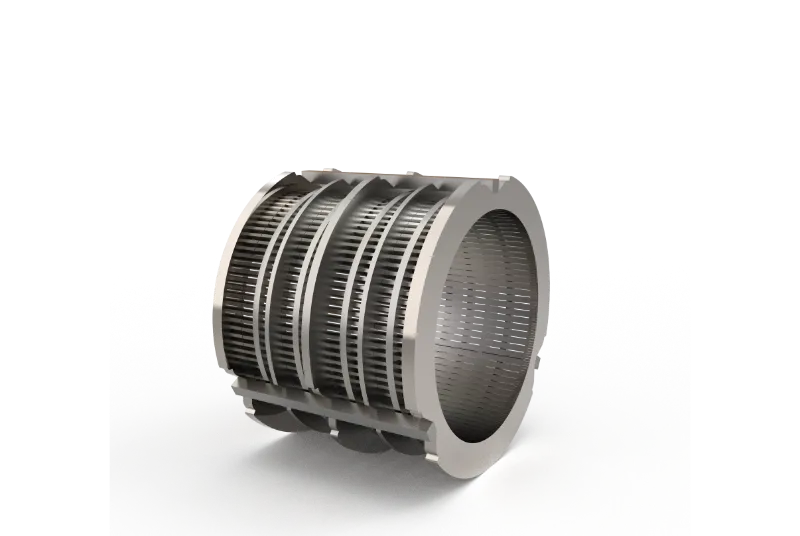

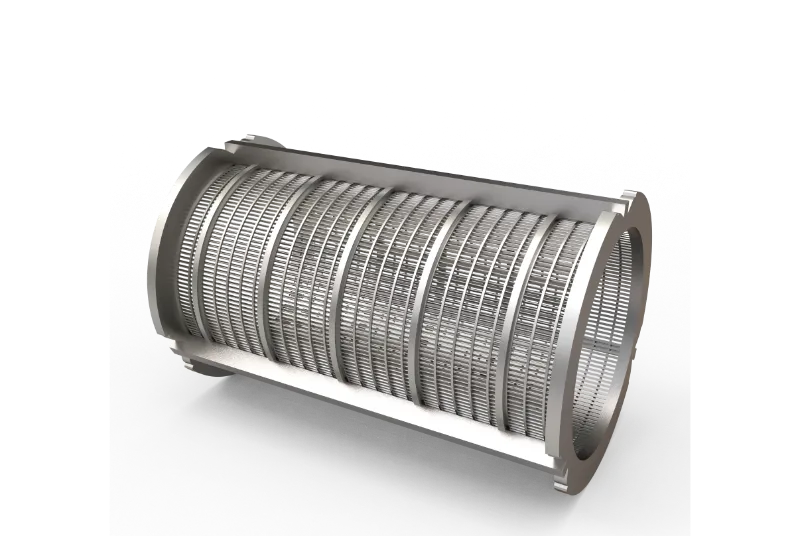

Screen material: Stainless steel
Screen size: Diameter 260*Length 785mm
Feed port diameter: 108mm
Diameter of discharge port: 159mm
Overflow port diameter: 159mm
Water content of treated solids: ≦65%
Processing capacity: ≦20 cubic meters/hour
Power supply: three-phase four-wire AC380V
Motor power: 11KW
Machine weight: 1020KG

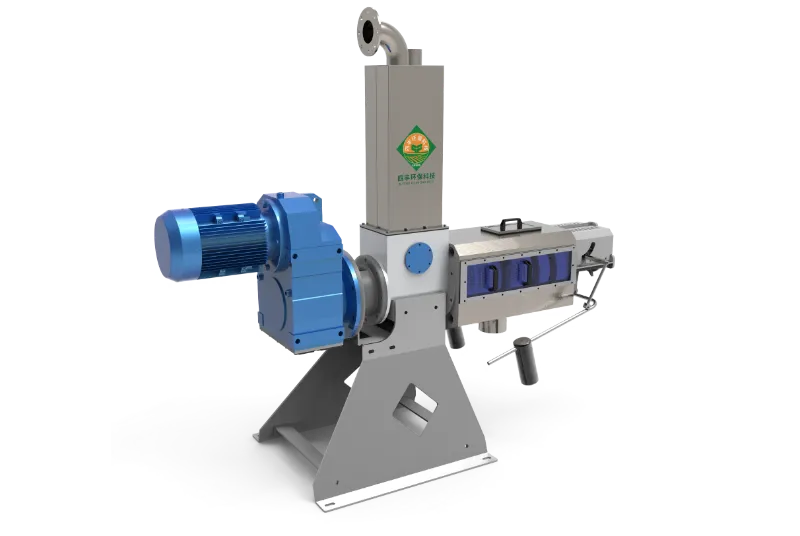

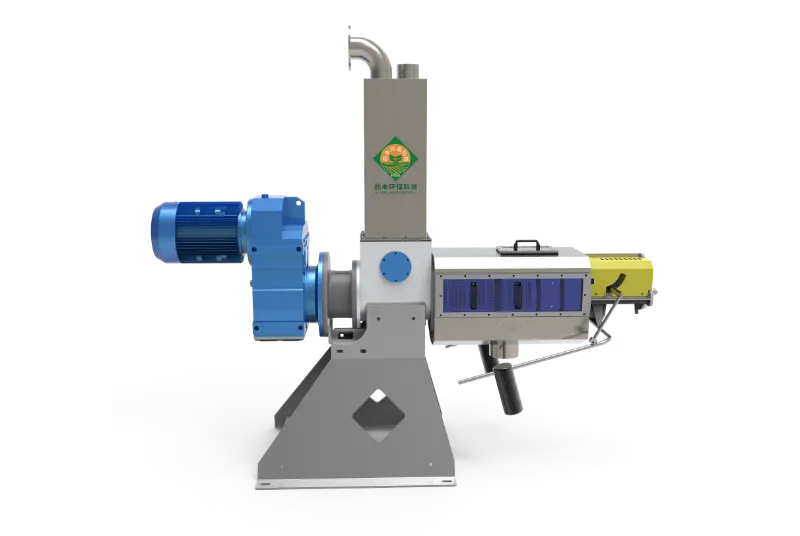

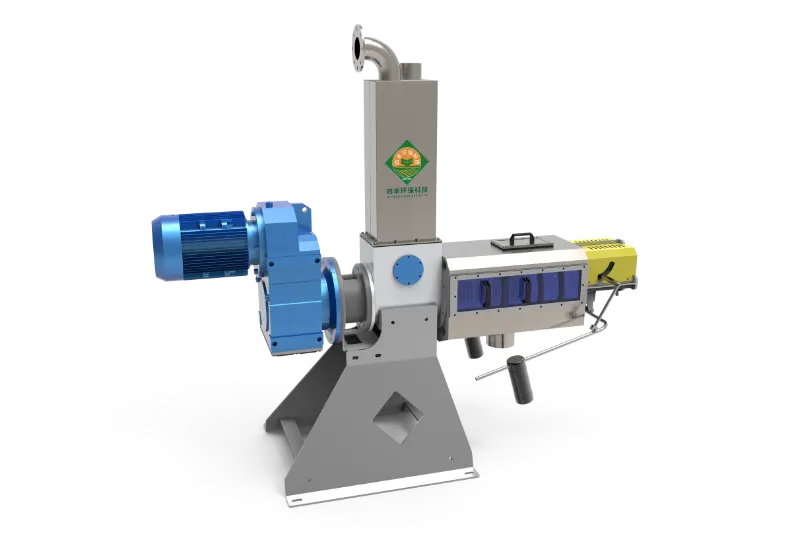

9GY-40P type spiral extrusion solid-liquid separator
1. It has a number of independent invention patents and has strong processing capacity.
2. The dryness of the discharge is high, and the moisture content of the material after treatment reaches less than 65%, which effectively reduces the time required for subsequent fermentation, labor costs and land costs.
3. The moisture content of dry matter after treatment with multiple screens and variable pitch auger technology is low, while the fiber material in the manure is retained to the greatest extent without damage.
3. The whole body is made of stainless steel, and the core components are treated with anti-wear coating technology. It works stably and has a long life. It is a product that can produce continuously and safely.
4. The motor and reducer are selected from well-known brands to ensure the service life and stability in the manure environment.
The equipment parameters can be customized according to the needs of the farm, and the most suitable manure treatment solution for the ranch can be provided according to the actual situation. The equipment installation and commissioning process is equipped with professional engineers for on-site guidance, and the equipment guarantees the discharge effect.
Related supporting equipment (optional)
1. Feeding pump (selected according to the ranch situation)
2. Agitator (selected according to the ranch situation)
3. Overall control system (overall control of multiple devices)
Parameter
| Model No.: | 9GY-40P |
| Dimension(mm) : | 2500*950*1900mm |
| Material: | Stainless steel（Geared motor and legs : carbon steel） |
| Capacity: | ≤20m³/h |
| Moisture content after treatment: | ≦65% |
| Power supply | Three-phase four-wire AC380V |
| Motor power: | 7.5KW |
| Weight | 1020KG |
| Application | Solid-liquid separator for dairy cow manure |
9GY-40P solid-liquid separator has a higher discharge dryness which no need the secondary extrusion process and effectively reduce the time and site costs of the later material sterilization and fermentation process.
Hot Selling Product Series
9FQ-3500 Manure Scraper
9GY-40 Screw Extrusion Solid-Liquid Separator
Success Cases
5,000-head ranch manure treatment unit reconstruction project
5,000-head ranch manure treatment unit reconstruction project
The 10,000-head ranch is located in northern China, with a dry climate throughout the year, long sunshine hours, and winter temperatures up to -30℃.
Previously, other brands of manure treatment equipment on the market were used. The processing capacity, processing volume, processing dryness, and sterilization rate could not meet the ranch requirements.
Our company proposed a corresponding reconstruction plan through on-site investigation of the project and was adopted by the ranch.
Large-scale dairy farm manure treatment and resource utilization project
Large-scale dairy farm manure treatment and resource utilization project
The manure treatment and resource utilization project of a 10,000-head dairy farm is designed according to the layout of equipment in the existing manure treatment workshop of the ranch to solve the problems of large manure treatment volume and low temperature in winter.
25,000-head super-large-scale ranch manure treatment project
25,000-head super-large-scale ranch manure treatment project
Super-large-scale dairy farm manure treatment project, this project is contracted by a third-party company, we provide manure treatment and separation equipment, since the manure treatment plan for the large ranch has been determined, we have improved the existing 9GY-ZG35 solid-liquid separator based on the determined manure treatment plan and the actual state of manure.
