Livestock and Poultry Manure Solid-liquid Separator
Equipment parameters
Product model: 9GY-8
External dimensions: 1650*670*1550mm;

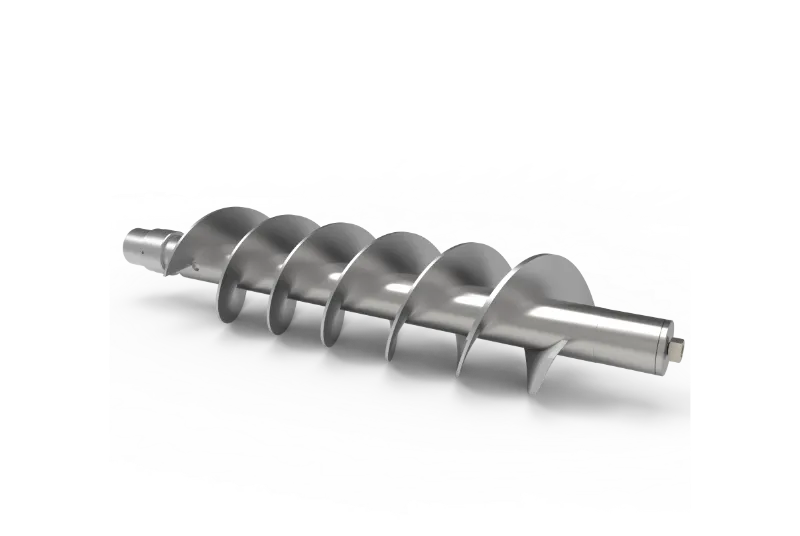

Auger diameter: 200mm

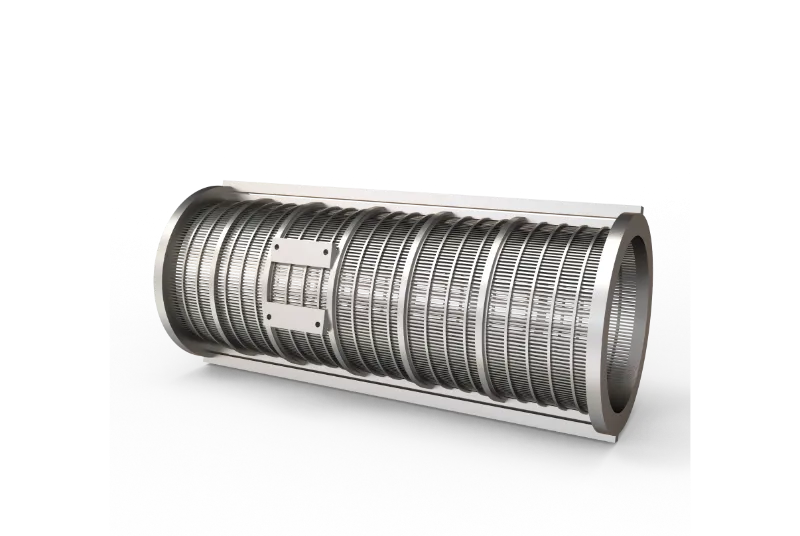

Screen size: 200mm diameter*600mm length
Feed port diameter: 76mm
Diameter of discharge port: 159mm
Diameter of overflow port: 76mm
Diameter of solid discharge port: 175mm
Weight: 230kg;
Details
Product Advantages
Practicality
The slag-liquid separation speed is fast, and the water content of the feces slag after separation is ≤70%, and the slag discharge amount and water content can be adjusted.
Advancedness
Strong separation ability, stable discharge, double lock cover design of the machine body, easy maintenance.
Durability
The frame, screen frame, auger, and screen are made of stainless steel and wear-resistant treatment, which are corrosion-resistant, high-strength and long-lasting.
Economical type
High degree of automation, low power consumption, and low price.
Product performance indicators
Processing capacity: 5-8m³/h; Solid moisture content after treatment: ≤70%;
Outer box: 304 stainless steel; Auger: 304 stainless steel coated with high-strength wear-resistant coating; Screen: 304 stainless steel;
Processing materials: cow dung, pig dung, chicken dung, duck dung, biogas slurry, food processing residues, etc.;
Detailed introduction

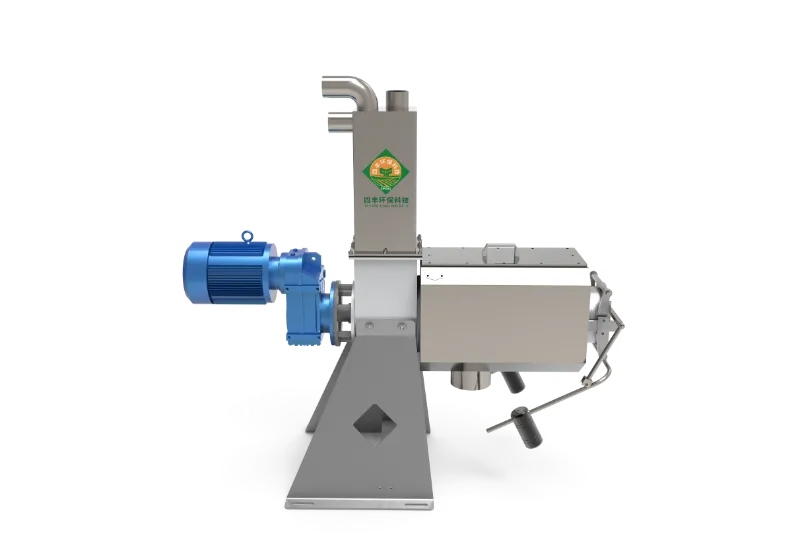

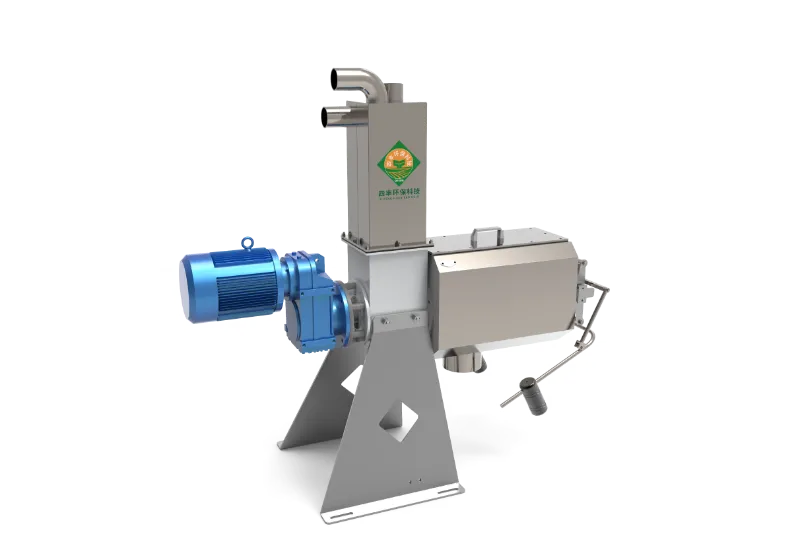

9GY-8 spiral extrusion solid-liquid separator
1. The spiral extrusion solid-liquid separator has a number of independent invention patents and has strong processing capacity.
2. The body is exquisite and matched with the precision screen to quickly separate the solid matter in the material.
3. The whole body is made of stainless steel, and the core components are treated with film-coated wear-resistant technology. It works stably and has a long life. It is a product that can be continuously and safely produced;
4. The motor and reducer are selected from well-known brands to ensure the service life and stability in the manure environment.
The equipment parameters can be customized according to the needs of the farm, and according to the actual situation, the most suitable manure treatment solution for the ranch is provided. The equipment installation and commissioning process is equipped with professional engineers for on-site guidance, and the equipment guarantees the discharge effect.
Supporting related equipment (optional)
1. Feeding pump (selected according to the ranch conditions)
2. Agitator (selected according to the ranch conditions)
3. Overall control system (overall control of multiple devices)
Parameter
| Model No.: | 9GY-8 |
| Dimension(mm) : | 1650*670*1550mm |
| Material: | Stainless steel （Geared motor and legs : carbon steel） |
| Capacity: | 5-8m³/h |
| Moisture content after treatment: | ≦70% |
| Power supply | Three-phase four-wire AC380V |
| Motor power: | 4KW |
| Weight | 230KG |
| Application | Solid-liquid separator for poultry manure; Solid-liquid separator of pig manure Solid-liquid separator for dairy cow manure Oxidation pond sewage fine filtration |
9GY-8 solid-liquid separator (physical fine filter) has a wide range of applications. It can separate solid-liquid from various livestock and poultry manure. It consumes little power and is suitable for small farms.
Meantime, the min screen gap can reach 0.2mm, which can physically reduce the solid content of oxidation pond sewage for a second time. This process does not require the addition of bacterial strains and additives, effectively reducing operating costs and reducing environmental pollution.
Hot Selling Product Series
9FQ-3500 Manure Scraper
9GY-40 Screw Extrusion Solid-Liquid Separator
Success Cases
5,000-head ranch manure treatment unit reconstruction project
5,000-head ranch manure treatment unit reconstruction project
The 10,000-head ranch is located in northern China, with a dry climate throughout the year, long sunshine hours, and winter temperatures up to -30℃.
Previously, other brands of manure treatment equipment on the market were used. The processing capacity, processing volume, processing dryness, and sterilization rate could not meet the ranch requirements.
Our company proposed a corresponding reconstruction plan through on-site investigation of the project and was adopted by the ranch.
Large-scale dairy farm manure treatment and resource utilization project
Large-scale dairy farm manure treatment and resource utilization project
The manure treatment and resource utilization project of a 10,000-head dairy farm is designed according to the layout of equipment in the existing manure treatment workshop of the ranch to solve the problems of large manure treatment volume and low temperature in winter.
25,000-head super-large-scale ranch manure treatment project
25,000-head super-large-scale ranch manure treatment project
Super-large-scale dairy farm manure treatment project, this project is contracted by a third-party company, we provide manure treatment and separation equipment, since the manure treatment plan for the large ranch has been determined, we have improved the existing 9GY-ZG35 solid-liquid separator based on the determined manure treatment plan and the actual state of manure.
