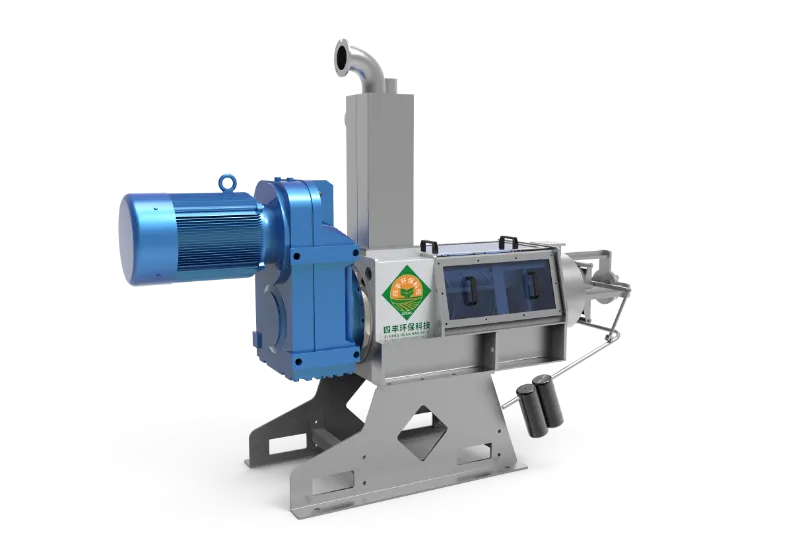

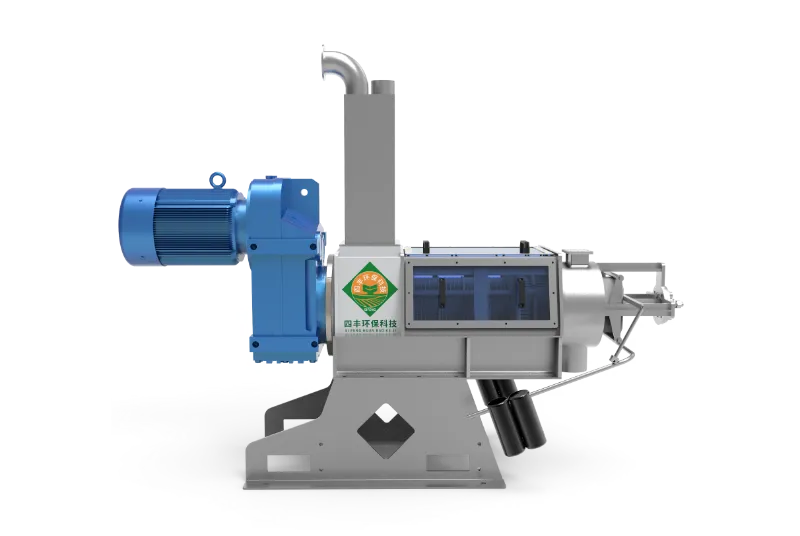

Livestock and Poultry Manure Solid-liquid Separator
Product performance indicators
Processing capacity: ≤20m³/h; solid moisture content after treatment: ≤60%;
Outer box: stainless steel; auger: stainless steel coated with high-strength wear-resistant coating; screen: stainless steel;
Processing material: dairy cow dung;
Details
Product Advantages
Practicality
Fast slag-liquid separation speed, the water content of the separated dung slag is ≤60%, and the slag discharge and water content can be adjusted.
Advancedness
Strong separation ability, stable discharge, double lock cover design of the machine body, convenient maintenance.
Durability
The frame, screen frame, auger, and screen are made of stainless steel and wear-resistant treatment, which are corrosion-resistant, high-strength and long-life.
Economical type
High degree of automation, low power consumption, and low price.
Detailed introduction
Equipment parameters
Product model: 9GY-ZG35
External dimensions: 2970*828*2120mm high;
Material: Stainless steel for the whole machine (except for the legs and the reduction motor)
Feed box height: 923mm
Discharge port pressurization method: Conical disc adjustable double cylinder pressurization

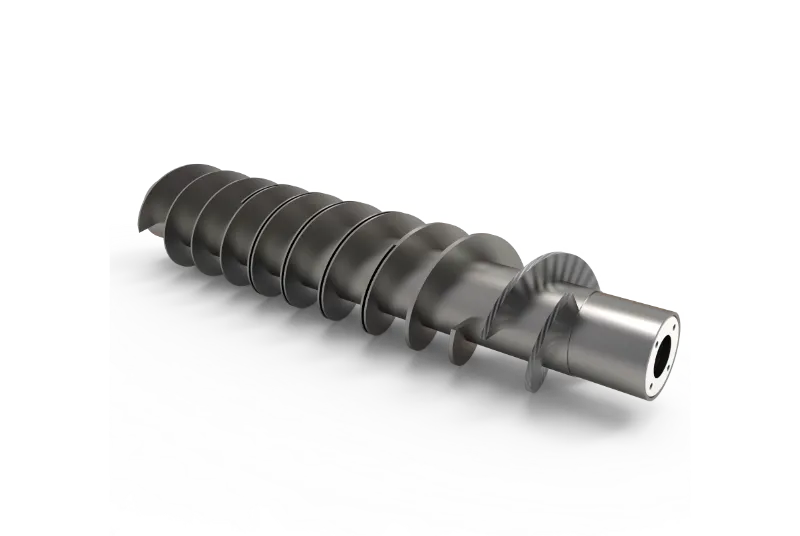

Auger material: Stainless steel coated with high-strength wear-resistant coating
Auger size: Total length 1691mm Diameter 260mm

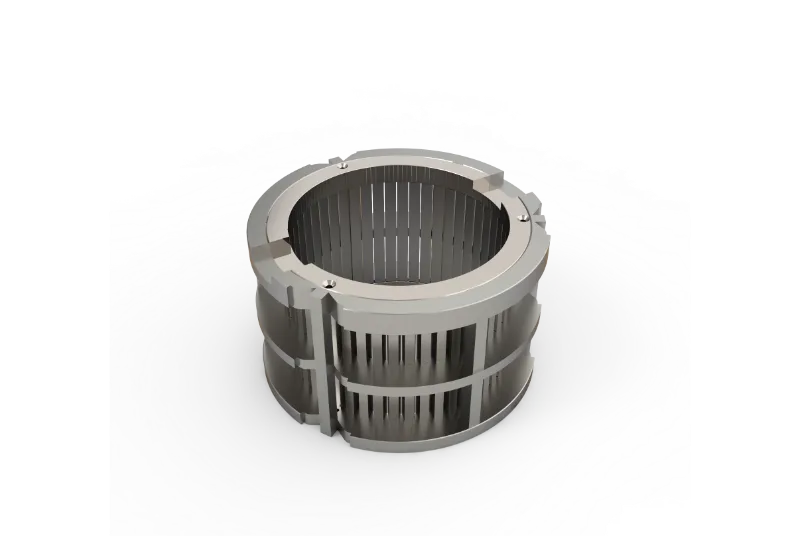

Screen type: Three-stage squeeze bar screen (single squeeze bar can be replaced separately)
Screen material: Stainless steel
Screen gap: 0.75mm-1.2mm optional
Screen size: Total length 920mm Diameter 260mm
Three-stage screen: Long screen 520mm + short screen 200mm*2
Feed port diameter: 108mm
Overflow port diameter: 159mm
Drain port diameter: 159mm
Power supply: Three-phase four-wire AC380V
Motor power: 15KW
Machine weight: 1300KG
9GY-40P spiral extrusion solid-liquid separator
1. It has a number of independent invention patents. The spiral extrusion solid-liquid separator has strong processing capacity.
2. The dryness of the discharged material is high, and the moisture content of the treated material reaches below 60%, which effectively reduces the time required for subsequent fermentation, labor costs and land costs.
3. The moisture content of the dry matter after treatment with multiple screens and variable pitch auger technology is low, while the fiber material in the manure is retained to the greatest extent without damage.
3. The whole body is made of stainless steel, and the core components are treated with film-coated wear-resistant technology. It has stable operation and long life, and is a product that can be continuously and safely produced;
4. The motor and reducer are selected from well-known brands to ensure service life and stability in the manure environment.
The equipment parameters can be customized according to the needs of the farm, and according to the actual situation, the most suitable manure treatment solution for the ranch is provided. The equipment installation and commissioning process is equipped with professional engineers for on-site guidance, and the equipment guarantees the discharge effect.
Supporting related equipment (optional)
1. Feeding pump (selected according to the ranch situation)
2. Agitator (selected according to the ranch situation)
3. Overall control system (overall control of multiple devices)
Parameter
| Model No.: | 9GY-ZG35 |
| Dimension(mm) : | 2970*828*2120mm Height |
| Material: | Stainless steel（Geared motor and legs : carbon steel） |
| Capacity: | ≤20m³/h |
| Moisture content after treatment: | ≦60% |
| Power supply | Three-phase four-wire AC380V |
| Motor power: | 15KW |
| Weight | 1300KG |
| Application | Solid-liquid separator for dairy cow manure |
9GY-ZG35 is a new solid-liquid separator developed by our company for dairy farms with forage bedding needs.
The equipment has high discharge dryness, can eliminate the need for secondary extrusion, and can effectively save the time and site costs for later material sterilization and fermentation process.
01
Application of multiple patented technologies
"Multi-section auger structure", "detachable press bar", "discharge port with heavy hammer pressure", "high-strength main frame" and other details have been improved.
02
Discharge higher dryness
9GY-ZG35 process a dry material moisture content ≤60%, no need secondary extrusion which can ensure fiber material integrity.
03
Equipment with excellent materials
The equipment is mainly made of stainless steel (the motor reducer and legs: carbon steel). In addition, the core components are covered with wear-resistant alloy coating to ensure the durability of the equipment.
The rigidity of the overall frame is strengthened to ensure the stability of equipment operation; Short screen press bar structure, high hardness (≥50HRC), wear resistance. The press bars can be disassembled separately, which reduces maintenance costs;
Auger hardening treatment method, the surface hardness of the discharge end blade is ≥65HRC, and the coating thickness is ≥2.5mm;
Hot Selling Product Series
9FQ-3500 Manure Scraper
9GY-40 Screw Extrusion Solid-Liquid Separator
Success Cases
5,000-head ranch manure treatment unit reconstruction project
5,000-head ranch manure treatment unit reconstruction project
The 10,000-head ranch is located in northern China, with a dry climate throughout the year, long sunshine hours, and winter temperatures up to -30℃.
Previously, other brands of manure treatment equipment on the market were used. The processing capacity, processing volume, processing dryness, and sterilization rate could not meet the ranch requirements.
Our company proposed a corresponding reconstruction plan through on-site investigation of the project and was adopted by the ranch.
Large-scale dairy farm manure treatment and resource utilization project
Large-scale dairy farm manure treatment and resource utilization project
The manure treatment and resource utilization project of a 10,000-head dairy farm is designed according to the layout of equipment in the existing manure treatment workshop of the ranch to solve the problems of large manure treatment volume and low temperature in winter.
25,000-head super-large-scale ranch manure treatment project
25,000-head super-large-scale ranch manure treatment project
Super-large-scale dairy farm manure treatment project, this project is contracted by a third-party company, we provide manure treatment and separation equipment, since the manure treatment plan for the large ranch has been determined, we have improved the existing 9GY-ZG35 solid-liquid separator based on the determined manure treatment plan and the actual state of manure.
